Real project • Washington, DC
Direct-vent water heater replacement in Northwest DC
A direct-vent gas water heater replacement in a tight Northwest DC utility closet, finished with new copper connections, an expansion tank and dedicated vent piping.
- Location
- Washington, DC
- Service
- Water heater replacement
- Completed
- August 2026
- Equipment
- A. O. Smith ProLine direct-vent gas water heater
Completed installationWhat this project involved
This project shows why photos of the entire mechanical space matter. The heater sits close to other equipment, so the replacement had to work with the available footprint, existing utility lines and vent route. The finished installation keeps the major service components visible and accessible.
Installation details
- Direct-vent gas replacement in a compact utility closet
- Copper hot and cold water connections
- Expansion tank and accessible shutoff valve
- Dedicated intake and exhaust piping
Job photo library
See the installation up close
These are the original project photos. The captions identify the equipment and installation details visible in each image.
Completed installation

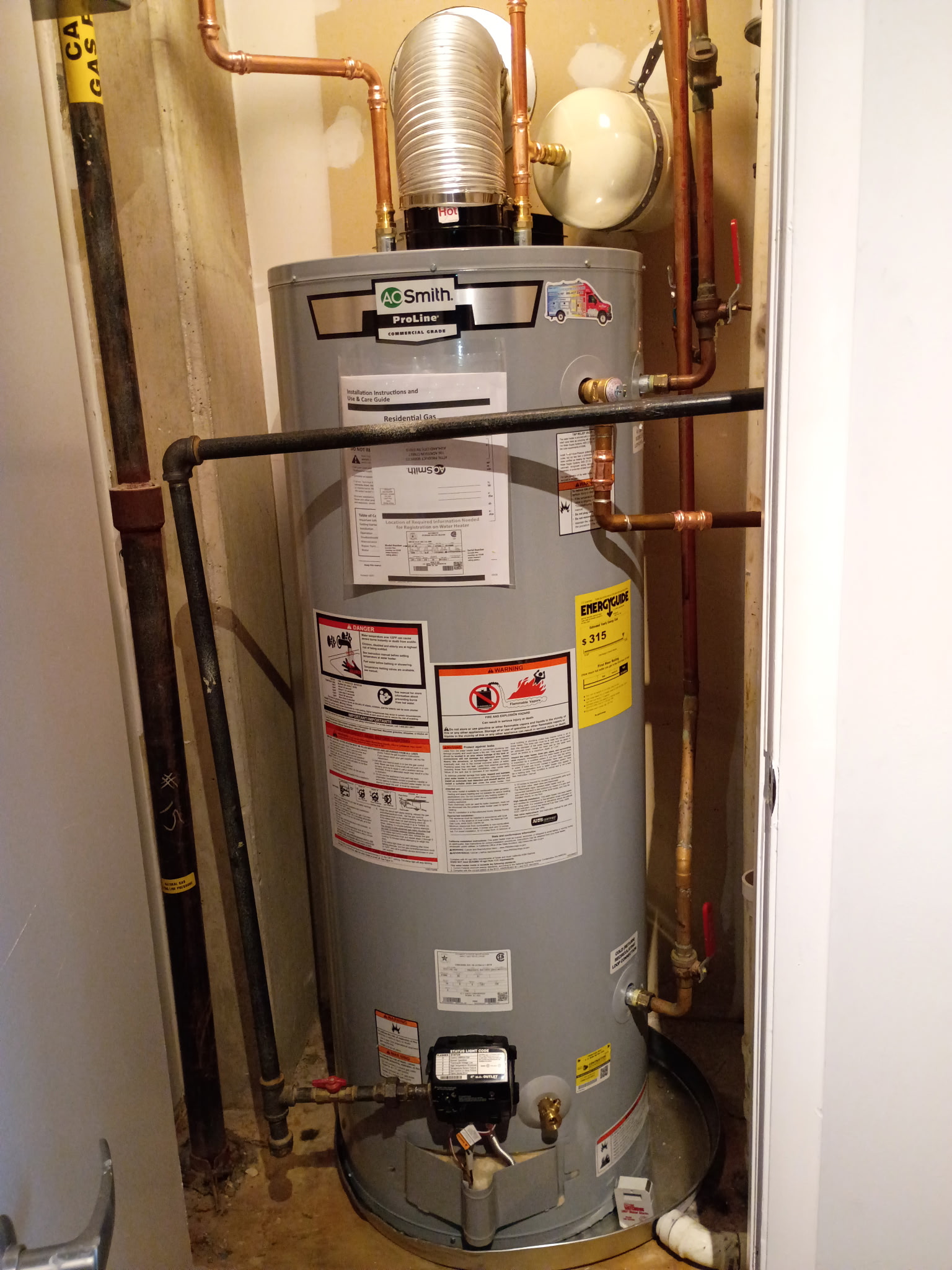

Connections & expansion tank

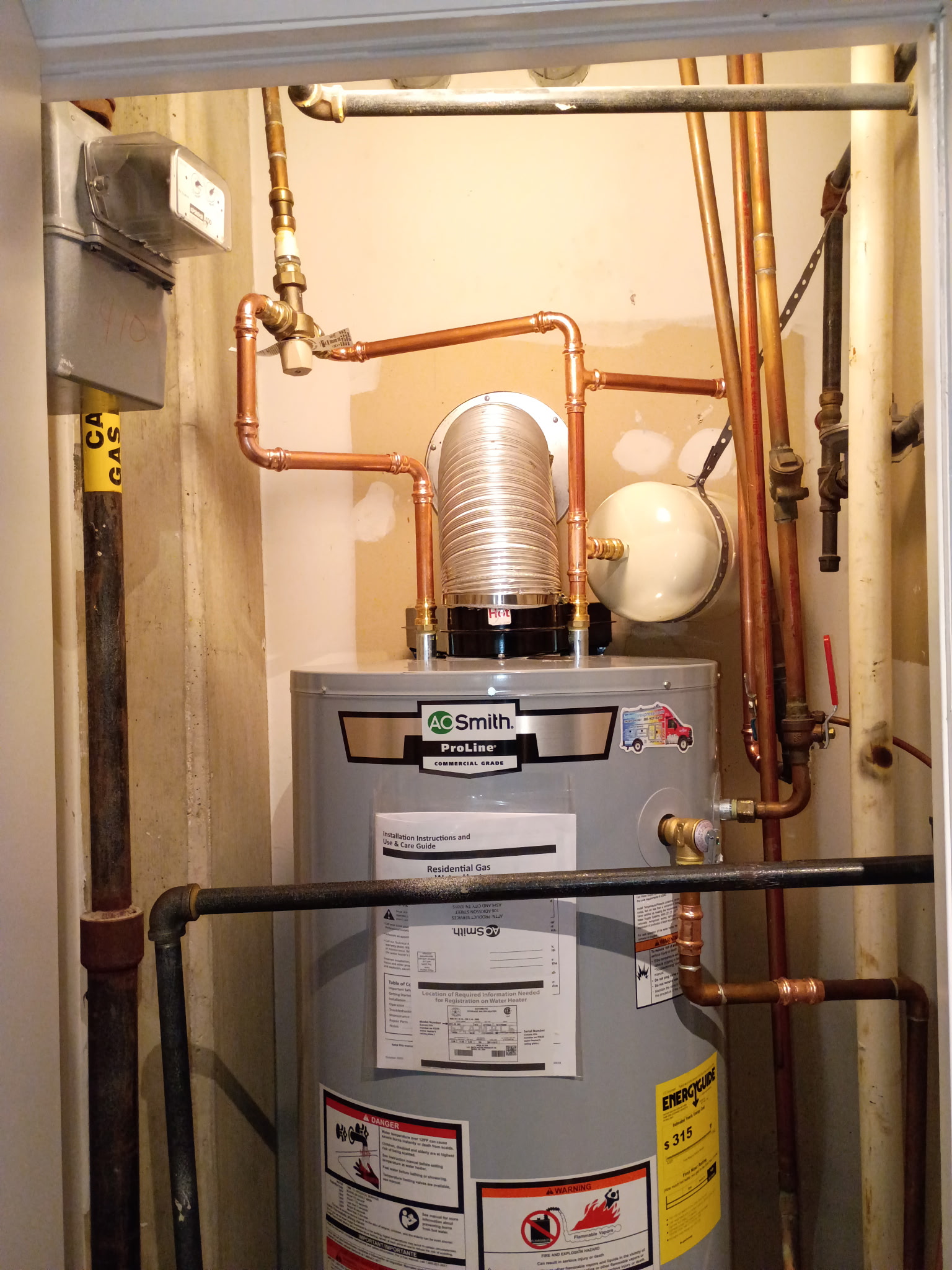

Vent & service detailLocal help
